pH of anti-VEGF agents in the human vitreous: low impact of very different formulations

  • Bianka Sobolewska1Email author,
  • Peter Heiduschka2,
  • Karl-Ulrich Bartz-Schmidt1 and
  • Focke Ziemssen1
International Journal of Retina and Vitreous20173:22

DOI: 10.1186/s40942-017-0075-x

Received: 12 January 2017

Accepted: 12 April 2017

Published: 26 June 2017

Abstract

Background

The aim of the study was to measure pH changes of the human vitreous caused by the intravitreal drugs bevacizumab, ranibizumab, aflibercept, and ziv-aflibercept.

Methods

Fresh human vitreous samples were obtained during core vitrectomy (23-gauge) from patients with epiretinal gliosis. Aliquots of bevacizumab, ranibizumab, aflibercept or ziv-aflibercept (2 µl) were added consecutively to 200 µl of vitreous samples or 0.9% NaCl saline. The pH was measured using a pH-sensitive microelectrode. Rituximab, in off-label use against intraocular lymphoma, was tested as an IgG1 antibody.

Results

The pH of the administered drugs was 5.91 for bevacizumab (95% CI 5.63–6.19), 5.32 for ranibizumab (95% CI 5.0–5.63), 6.05 for aflibercept (95% CI 5.78–6.31), ziv-aflibercept 6.1 (95% CI 6.05–6.15), and 6.29 for rituximab (95% CI 5.97–6.61). While the fresh and undiluted vitreous fluid showed pH values of 7.0–7.4, pH values increased if saline or rituximab were added. In contrast, the pH decreased slightly if aflibercept, bevacizumab, ranibizumab or ziv-aflibercept were supplemented. The observed pH decreases were not significant after ranibizumab was added. Significant changes were only notable with higher-than-normal amounts of bevacizumab (26–40 µl). The vitreous showed the most robust buffering capacity towards ranibizumab and rituximab.

Conclusions

The pH changes in vitreous samples elicited by the usual intravitreal anti-VEGF drugs differed clearly, but only by much higher concentrations than used in the clinical routine. Although the ingredient solution of ranibizumab showed the lowest pH, it caused only moderate changes of vitreal pH compared to bevacizumab, aflibercept or ziv-aflibercept.

Keywords

Bevacizumab Ranibizumab Aflibercept Ziv-aflibercept Rituximab Anti-VEGF Vitreous pH

Background

The anti-vascular endothelial growth factor (anti-VEGF) agents are the first-line treatment in neovascular age-related macular degeneration (AMD) and other frequent ocular diseases associated with macular edema and retinal neovascularization. Of the three different anti-VEGF agents available, ranibizumab (recombinant Fab antibody fragment) and aflibercept (fusion protein), have been approved by the Food and Drug Administration for intravitreal application. Bevacizumab (IgG1 antibody) and ziv-aflibercept (identical fusion-protein to aflibercept) are used off-label because they were primarily developed for intravenous treatment of metastatic colorectal cancer [1, 2].

All of these anti-VEGF agents differ in their clinical formulation. Since a different pH and components of drug solutions may lead to changes in the buffering capacity of the human vitreous, the purpose of this study was to evaluate the pH changes of the human vitreous after the administration of intravitreous drugs. The effects of rituximab, used for treatment of intraocular lymphoma, were also characterized [3].

Methods

Materials

Bevacizumab was obtained from Roche Pharma (Basel, Switzerland), ranibizumab from Novartis Pharma GmbH (Nürnberg, Germany), aflibercept from Bayer Pharma (Berlin, Germany), and ziv-aflibercept from Sanofi-Aventis (Frankfurt, Germany). The CD20-specific humanized monoclonal antibody rituximab, which served as an antibody control, was obtained from Roche Pharma (Basel, Switzerland).

Sample collection

Human vitreous samples were collected by 23-gauge pars-plana core vitrectomy for epiretinal gliosis at a tertiary center (Center for Ophthalmology at the University of Tübingen, Germany). All subjects (n = 10, women: men 4:6, age: mean = 70.5 years (95% CI 67.3–73.6), phakic: pseudophakic eyes 5:5, emmetropic:myopic eyes 7:3, a spherical equivalent was below 3 diopters) with any signs of pre- or intraoperative hemorrhage, any history of previous vitreoretinal surgery or intravitreal drug injections or any additional vitreoretinal disease were excluded from the study. The study adhered to the tenets of the Declaration of Helsinki and the Institutional Ethics Committee of the University of Tübingen granted approval. Written informed consent was obtained from all patients.

pH measurements

A high-quality, micro-pH electrode (HI 108213 HANNA® Instruments France PHR-146S) was used to determine pH values in small volumes. The recording system was calibrated before each experiment. The values of the drugs were determined in ready-to-use vials and syringes. For the fresh vitreous samples, all measurements were performed at least three times in ambient air and at room temperature, immediately after the collection. Up to 40 µl of bevacizumab, ranibizumab, aflibercept, ziv-aflibercept or rituximab was added in consecutive 2-µl steps to 200 µl of homogenized vitreous sample or 0.9% NaCl (Gibco®, USA, pH 7.0–7.3) [4]. If we assume the vitreous volume to be 4.4–5.5 ml (50 µl = 1/88–1/110), the 2 µl might correspond very likely to the effect of a single injection (1/100).

The pH of the gently mixed sample was measured continuously, and values were recorded after stabilization of displayed pH after each addition [4].

Statistics

Measured data were evaluated by non-parametric routines using the GraphPad Prism 6.0 software. The significance of differences was tested by the Friedman test (analysis of matched data sets) with the Dunn’s multiple comparisons test, where baseline data (pH values before addition of drugs) were compared with data after the addition of each drug. Correlations given in Fig. 2 were checked by Spearman’s test (pairwise x–y comparison).

Results

The pH values of the undiluted agents were measured, and the corresponding formulations and pH values are listed in Table 1. The ingredient solution containing ranibizumab showed the lowest pH of all three anti-VEGF agents (pH 5.32, 95% CI 5.00–5.63). Bevacizumab, aflibercept, and ziv-aflibercept had similar pH values of 5.91 (95% CI 5.63–6.19), 6.05 (95% CI 5.78–6.31) and 6.1 (95% CI 6.05–6.15), respectively, even though they are composed of different components.
Table 1

The formulations and pH values of anti-VEGF agents

Drug

Concen-tration (osmola-rity)

Dose in the vitreous (4 ml)/dose in 0.002 ml

Formulation

Measured pH

95% CI

Ranibizumab (Lucentis)

20 mg/ml (289 mOsm)

0.5 mg/0.04 mg

10 mM histidine-HCl, 10% α,α-trehalose dihydrate, 0.01% polysorbate 20

5.32

5.0–5.63

Bevacizumab (Avastin)

25 mg/ml (182 mOsm)

1,25 mg/0.05 mg

42 mM NaH2PO4·H2O, 8.45 mM Na2HPO4, 6% α,α-trehalose dihydrate, 0.04% polysorbate 20

5.91

5.63–6.19

Aflibercept (Eylea)

40 mg/ml (1000 mOsm)

2 mg/0.08 mg

10 mM Na3PO4, 40 mM NaCl, 5% sucrose, 0.03% polysorbate 20

6.05

5.78–6.31

Ziv-aflibercept (Zaltrap)

25 mg/ml (1000 mOsm)

1.25 mg/ 0.05 mg

100 mM NaCl, 5 mM Na citrate, 5 mM Na3PO4, 20% sucrose, 0.1% polysorbate 20

6.1

6.05–6.15

Rituximab (Rituxan)

10 mg/ml

1 mg/0.02 mg

154 mM NaCl, 25 mM Na citrate·2H2O, 0.07% polysorbate 80

6.29

5.97–6.61

The mean pH of the fresh vitreous samples before addition of any drug was 7.29. In the absence of any visible inclusions such as blood cells, there was some variability leading to a confidence interval (95% CI) of 7.20–7.39. The influence of the administered drugs on the measured pH values was evaluated in titration experiments and is shown in Fig. 1. When only saline was added to the vitreous, the pH increased by 0.46 units (Fig. 1a). After the addition of drugs to the saline, the pH decreased to different extents (open circles in Fig. 1b–e). The decrease was the smallest and not significant when rituximab was added (0.06 pH units compared to 0.62, 0.41, 0.36 and 0.27 units for bevacizumab, ranibizumab, aflibercept, and ziv-aflibercept, respectively). However, the pH values varied significantly when the drugs were added to vitreous (grey diamonds in Fig. 1b–e).
Fig. 1

a pH changes measured after addition of saline to vitreous. be pH changes measured after addition of various drugs as indicated to vitreous (diamonds) or to saline (circles). Broken lines (addition to vitreous) or dotted lines (addition to saline) indicate mean values. Significance of differences to initial values was calculated by Dunn’s multiple comparison and indicated by asterisks with *p < 0.05, **p < 0.01, ***p < 0.001 and ****p < 0.0001

Whereas the pH increased by 0.28 units after the addition of rituximab to vitreous (Fig. 1e), the pH decreased clearly and to almost the same extent as in saline after the addition of aflibercept (0.31 units) and more clearly with bevacizumab (0.57 units). When ranibizumab and ziv-aflibercept were added, the pH increased slightly at first and then decreased slightly, resulting in a final change of 0.18 units and 0.2 units, respectively.

In order to compare pH changes in vitreous and in saline, mean pH values after the addition of the same volumes were plotted in a correlation diagram (Fig. 2). The arrows near the data points show the direction of pH changes during titration. There was an almost perfect linear correlation between pH changes in saline and vitreous when aflibercept or bevacizumab were added, and the pH decreased slightly less in vitreous than in saline. However, a two-phasic trend was observed when ranibizumab or ziv-aflibercept was added. Firstly, the vitreous pH remained almost constant, whereas the saline pH decreased after addition of the same amount of these drugs. The pH decreased after the addition of more than 16 µl of both ranibizumab and ziv-aflibercept. In contrast, the addition of rituximab to vitreous resulted in a pH change in the opposite direction as that resulting from the addition of rituximab to saline.
Fig. 2

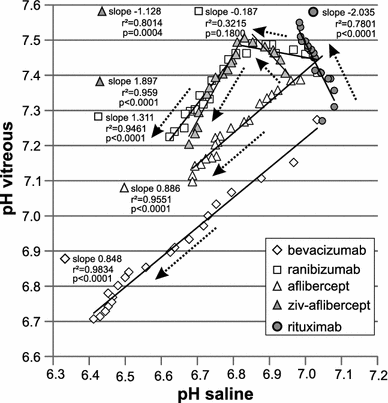

Diagram showing correlation between changes of pH in saline and vitreous. Orientation of the arrows shows the course of increasing amount of added drugs. Slopes and correlation coefficients were calculated by linear regression, and p values by Spearman correlation

Discussion

For intravitreal drugs, the data showed differences between the individual formulations and buffering systems. In spite of some fluctuations, however, the buffering capacity of the human vitreous fluid substantially reduced the effects of the drugs on the intraocular pH. Therefore, the pH changes induced by ranibizumab, rituximab and ziv-aflibercept (with slight restrictions) also by aflibercept and bevacizumab occurred in a small range and thus were found to be harmless. It would be fallacious to speculate on the potential detrimental effects of the undiluted agents on single cells or in different environments (e.g., after subretinal injection).

The concept of pH was developed by the Danish biochemist, Søren Peter Lauritz Sørensen in 1909 [5] using the negative form of the logarithm to base 10, in which p represented the numerical value of the power of the hydrogen ion exponent. The ‘titratable acidity’ can be measured by titration to pH 7.4 with sodium hydroxide. Although the buffering capacity of saline is negligible, buffering limits the effect of adding free acid of low titratable acidity, what is less easily accommodated. Weak anions, such as bicarbonate or albumin can associate with or liberate protons according to the prevailing [H+], effectively ‘buffering’ the pH around the dissociation constant of that acid anion. Administration of a 0.9% saline solution, containing no buffer base, was shown to dilute the endogenous buffer systems in the plasma, such as the important CO2/HCO3- buffer system [6]. The vitreous body is a highly hydrated gelatinous structure that consists of collagenous and non-collagenous glycoproteins, glycosamino-glycans, hyalocytes and fibroblasts [7, 8]. Its biochemical composition and anatomy have been extensively investigated [9], but still show interindividual differences [10]. However, not all physiological functions of the vitreous body are well understood [8, 9]. Until now, there were only a few reports about pH changes in the vitreous body [4, 11, 12]. Further knowledge of the buffering capacity of the vitreous should help in the development of well-tolerated, sustained drug-delivery systems and vitreous substitutes.

In this study, we evaluated the pH changes of the human vitreous after the addition of four anti-VEGF agents. Bevacizumab, ranibizumab, and aflibercept account for the vast majority of intravitreal injections in posterior segment diseases. In order to examine the buffering capacity of the human vitreous, these agents were also added to saline for comparison. Moreover, to check the pH drift of the vitreous in ambient air, saline was added to vitreous in another control experiment: If only neutral saline was added to the vitreous, the pH drifted toward the basic direction (Fig. 1a), as also reported by Conway et al. [4] It was therefore of interest to determine whether the addition of slightly acidic solutions of antibodies to the vitreous would reduce this basic shift or even result in a pH shift toward an acidic direction.

The vitreous was able to buffer acidic antibody solutions, yielding a slower decrease of pH than in saline or even a stable pH for at least a while. In detail, the results showed that the vitreous has a smaller buffering capacity towards aflibercept and bevacizumab solutions. The pH decreased when both drugs were added, though to a slightly smaller extent than after the addition of aflibercept or bevacizumab to saline (indicated by the slopes smaller than 1 in Fig. 2). In contrast, the pH remained almost stable after the addition of a small amount of both ranibizumab and ziv-aflibercept solution (16 µl, dilution: 1:12.5), thereafter the pH began to shift in an acidic direction. This result can be explained by the weak buffering capacity of histidine-HCl and sodium citrate, respectively (Table 1). Although ziv-aflibercept contains the same active drug as aflibercept, there are some differences in formulations of aflibercept and ziv-aflibercept, which seem to explain the above depicted ph changes in the human vitreous after addition of these drugs. However, only slight ph changes in the human vitreous after addition of ziv-aflibercept was observed. Therefore, this results corroborates previous data on safety use of ziv-aflibercept [2, 13].

The pH of rituximab (6,5) was close to neutral. Indeed, its addition to vitreous resulted in a slight increase rather than a decrease of pH, although to a lesser extent than if only saline was added. Moreover, the decline in pH of saline was much slower after rituximab was added than after addition of any of the anti-VEGF drugs.

The slight ability of the vitreous to resist changes in pH after the addition of acidic or alkaline drugs can be explained by its bicarbonate buffer system, an important intrinsic buffering capacity of the vitreous. Conway et al. showed that the buffering capacity of bovine vitreous to 0.1 N HCl and 0.1 N NaOH was greater than that of 0.9% NaCl, which is not surprising because saline does not have any buffering capabilities at all [5].

The bevacizumab solution caused the most pronounced pH shift in the acidic direction of both saline and vitreous (Fig. 1b). The complete buffer system present (Na2HPO4/NaH2PO4) in the commercially available formulation of bevacizumab may prevent the pH of bevacizumab to be changed and thus counteract the vitreous buffer system. Components of the other antibody solutions also have certain buffering capabilities; however, by far not as strong as the Na2HPO4/NaH2PO4 couple used in the bevacizumab solution.

Several limitations of this study have to be considered: (1) An open system that could lead to a slight alkaline pH drift [12, 14]. (2) Lack of measurement of the hyaluronate acid concentration in the vitreous samples, which might additionally act as a buffer, and (3) “gently mix” of homogenized vitreous samples. Furthermore, the extracted vitreous might show reactions other than those occurring in the living eye, including a lack of diffusion of substances into the vitreous across the blood-retinal barrier [11]. Moreover, it is likely that there are no living hyalocytes and fibroblasts left in the vitreous samples used in our experiments. These cells may also contribute to pH stabilization in the living eye. On the other hand, it has to be pointed out that even intravitreal pH measurements are invasive and not free of artifacts [12].

The higher concentrations of anti-VEGF drugs in our experiments do definitely exceed the actual levels typical of clinical use. Therefore, in vitro experiments cannot be directly applicable to the situation in the living eye. Further studies with a large number of patients are warranted to clarify the impact of those factors on pH changes of the human vitreous and set up correlations between refraction or lens status and buffering capacity of the human vitreous.

In conclusion, the vitreous maintains a stable pH after the addition of small amounts of anti-VEGF drugs, which is of relevance for clinical use [15]. Although the human vitreous has a certain buffering capacity, it is not able to maintain an acid-base balance after the addition of higher-than-normal amounts of bevacizumab and aflibercept in our ex vivo study. In order to assure the same buffering capacity of the in vitro experiments, media with a buffering capacity similar to that of the vitreous should be developed. As long as media with different contents (e.g., fetal bovine serum) are used in cell culture, non-physiological pH conditions have to be taken into consideration when in vitro results are evaluated [16]. The pH of drugs might affect sensitive cells. The direct contact with undiluted agents should be carefully tested before used in the sub-retinal or intra-retinal compartment. Additional research is required to examine the effects of drug application under physiologic conditions (i.e., under 5 vol% CO2 and temperature of 33°C [14]). Moreover, the impact of temperature differences on the human vitreous buffering capacity is worthy of examination [12, 14].

Conclusions

The experiments demonstrated that the buffering capacity of the human vitreous is an important factor in preventing harmful pH variations, which might otherwise be very likely facing the strongly acidic formulations of some intravitreal agents.

Declarations

Authors’ contributions

FZ: research design. BS, FZ: data collection. BS, PH, KUBS, FZ: analysis and interpretation. BS, PH, FZ: manuscript preparation. All authors read and approved the final manuscript.

Acknowledgements

Not applicable.

Authors’ information

PH is a biochemist and has a large research track record in visual electrophysiology and neuroprotection. He is heading the Research Lab of the University Eye Hospital Muenster. FZ is heading a research group with special focus on pharmacoviglance. The spokesman of the task force ‘seeing in old age’ of the German organization of blind and partially sighted people (DBSV) has been the Principal Investigator in several clinical trials, with a special focus on healthcare research. He is Vice Chair of the ad-hoc committee of the early benefit assessment for the German Professional Medical Societies and is member the team of the macula committee, establishing the clinical guidelines of the German scientific societies.

Competing interests

The authors have made the following disclosures: BS has received one travel grant from Galderma and Novartis. PH received consultancy honoraria from Novartis and project support from Novartis and Bayer Healthcare. FZ has received consulting fees from Alimera, Allergan, Bayer HealthCarePharmaceuticals, and Novartis, and speaker fees from Alcon, Alimera, Allergan, Bayer HealthCarePharmaceuticals, Heidelberg Engineering, and Novartis. The authors declare that there is no competing interests regarding the publication of this paper.

Availability of data and materials

All data generated or analysed during this study are included in this article. The data values used and analyzed during the current study are available from the corresponding author on reasonable request.

Consent for publication

This analysis does not include any personal information or image. All patients provided informed consent to the scientific analysis and publication of the anonymized data.

Ethics approval and consent to participate

The institutional review board approved the study. All patients providing tissue samples gave written informed consent.
